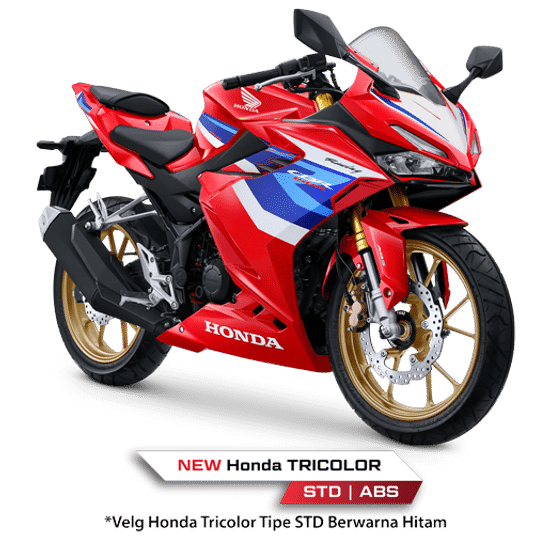

CBR150R
DAFTAR HARGA PASURUAN
| Model |
Harga |
| CBR150R STD HS |
39,724,000 |
| CBR150R (MP/RD) |
40,434,000 |
| CBR150R ABS HM |
42,846,000 |
| CBR150R ABS HM / BK Matte |
43,787,000 |
| CBR150R ABS (MP) |
43,352,000 |
| CBR150R ABS (OP) |
44,494,000 |
Spesifikasi Motor
| Tipe Mesin |
4-Langkah, DOHC |
| Kapasitas Mesin |
149,16 cc |
| Sistem Suplai Bahan Bakar |
PGM-FI (Programmed Fuel Injection) |
| Diameter X Langkah |
57,3 x 57,8 mm |
| Tipe Tranmisi |
Manual, 6 kecepatan |
| Rasio Kompresi |
11,3 : 1 |
| Daya Maksimum |
12,6 kW (17,1 PS / 9.000 rpm ) |
| Torsi Maksimum |
14,4 Nm (1.47 kgf.m / 7.000 rpm ) |
| Tipe Starter |
Elektrik |
| Tipe Kopling |
Wet |
| Sistem Pendingin Mesin |
Liquid Cooled with Auto Fan |
| Pola Perpindahan Gigi |
1-N-2-3-4-5-6 |
| Tipe Rangka |
Diamond (Truss) Frame |
| Tipe Suspensi Depan |
Inverted Telescopic Front Suspension |
| Tipe Suspensi Belakang |
Swing Arm with Monoshock (Pro-Link) System |
| Ukuran Ban Depan |
100/80-17M/C 52P |
| Ukuran Ban Belakang |
130/70-17M/C 62P |
| Rem Depan |
Wavy Disc Brake (Non-ABS)/Wavy Disc Brake – ABS (ABS) |
| Rem Belakang |
Wavy Disc Brake (Non-ABS)/Wavy Disc Brake – ABS (ABS) |
| Panjang X Lebar X Tinggi |
1.983 x 700 x 1.077 mm |
| Tinggi Tempat Duduk |
782 mm |
| Jarak Sumbu Roda |
1.310 mm |
| Jarak Terendah Ke Tanah |
160 mm |
| Curb Weight |
137 kg (Non ABS)/139 kg (ABS) |
| Kapasitas Tangki Bahan Bakar |
12 Liter |
| Kapasitas Minyak Pelumas |
1,1 Liter |
| Tipe Baterai Atau Aki |
MF Wet 12V 5Ah |
| Sistem Pengapian |
Full Transisterized |
| Tipe Busi |
NGK MR9C-9N atau ND U27EPR-N9 |
