Spesifikasi Motor
| Tipe Mesin |
Air-Cooled, 4-Stroke, SOHC Single Cylinder |
| Kapasitas Mesin |
124,89cc |
| Sistem Suplai Bahan Bakar |
PGM-FI (Programmed Fuel Injection System) |
| Diameter X Langkah |
52,4 x 57,9 mm |
| Tipe Tranmisi |
Manual, 4-speed |
| Rasio Kompresi |
9,3 : 1 |
| Daya Maksimum |
6,5 Kw / 7.000 rpm |
| Torsi Maksimum |
11 Nm / 4.500 rpm |
| Tipe Starter |
Electric & Kick |
| Tipe Kopling |
Wet, Multi-plate Coil Spring |
| Tipe Rangka |
Backbone, Steel |
| Tipe Suspensi Depan |
Telescopic Suspension |
| Tipe Suspensi Belakang |
Twin Rear Suspension |
| Ukuran Ban Depan |
80/90-17M/C 44P |
| Ukuran Ban Belakang |
80/90-17M/C 50P |
| Rem Depan |
220mm Hydraulic Disc |

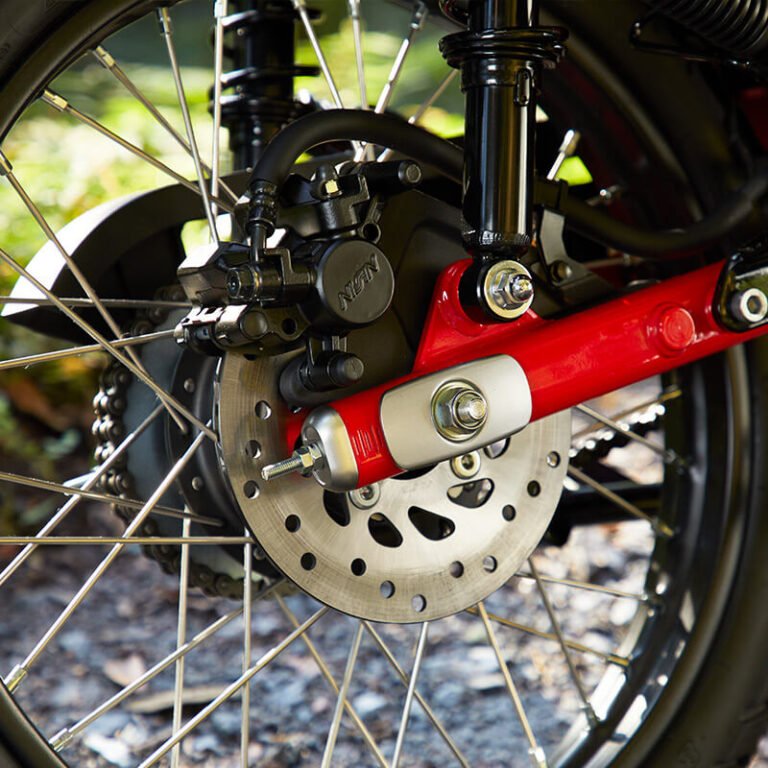

| Rem Belakang |
190mm Hydraulic Disc |

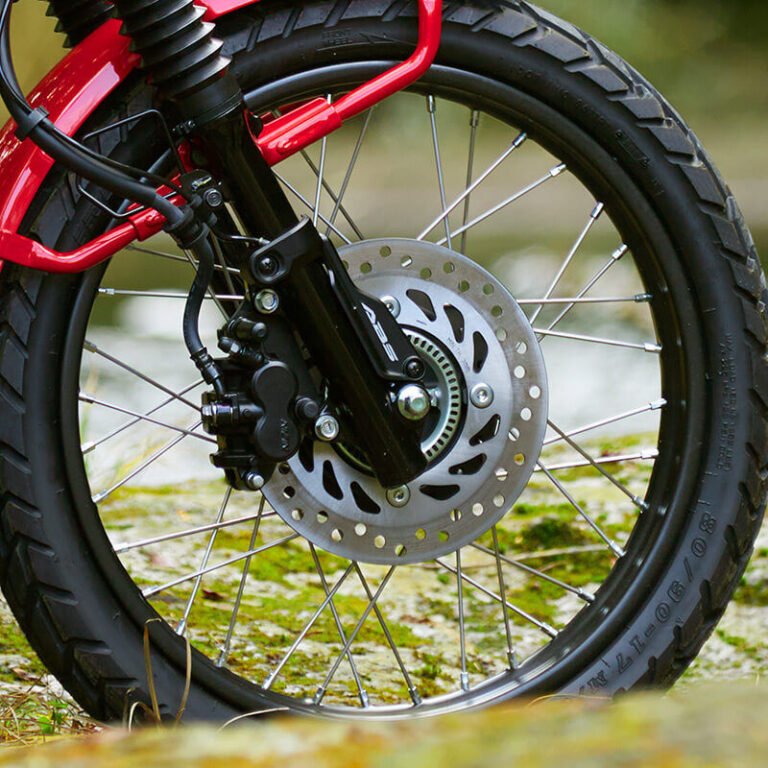

| Sistem Pengereman |
ABS 1 Channel |
| Panjang X Lebar X Tinggi |
1.960 x 805 x 1.085 mm |
| Tinggi Tempat Duduk |
800 mm |
| Jarak Sumbu Roda |
1.255 mm |
| Jarak Terendah Ke Tanah |
165 mm |
| Curb Weight |
120 kg |

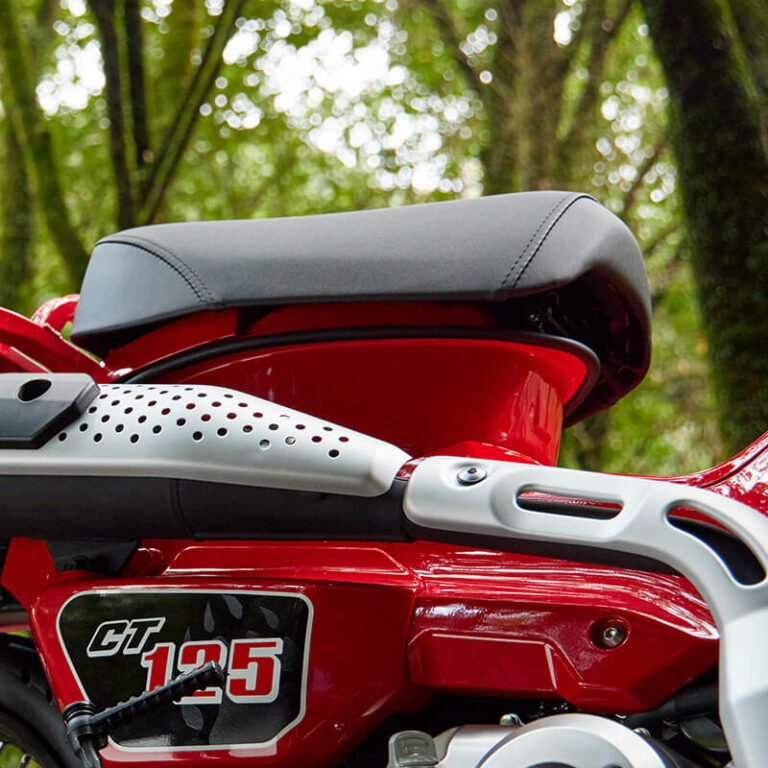

| Kapasitas Tangki Bahan Bakar |
5,3 L |
| Kapasitas Minyak Pelumas |
0,7 L |
| Sistem Pengapian |
Full-Transisterized |
| Tipe Busi |
NGK CPR6EA-9 / DENSO U20EPR9 |

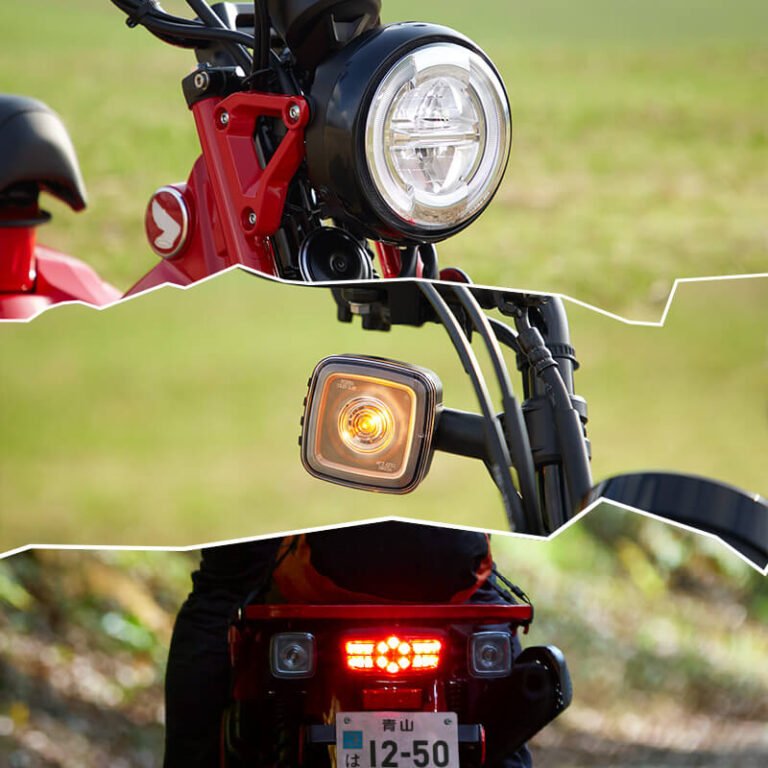

| Lampu Depan |
Hi 10,1 W x 1 LED – Low 5,1 W x 1 LED |
