Spesifikasi Motor
| Tipe Mesin |
4-Langkah, SOHC, Satu Silinder |
| Kapasitas Mesin |
149.15 cm3 |
| Sistem Suplai Bahan Bakar |
PGM-FI (Programmed Fuel Injection) |
| Diameter X Langkah |
57.3 x 57.8 mm |
| Tipe Tranmisi |
5-Speed |
| Rasio Kompresi |
9.5:1 |
| Daya Maksimum |
9,51 kW(12,91 PS)/8.000 rpm |
| Torsi Maksimum |
12,43 Nm(1,27 kgf.m)/6.500 rpm |
| Tipe Starter |
Pedal dan Elektrik |
| Tipe Kopling |
Manual, Multiplate Wet Clutch |
| Sistem Pendingin Mesin |
Pendingin Udara |
| Pola Perpindahan Gigi |
1 – N – 2 – 3 – 4 – 5 |
| Tipe Rangka |
Semi Double Cradle |
| Tipe Suspensi Depan |
Inverted Telescopic Front Suspension (Diameter 37 mm & Stroke 225 mm) |
| Tipe Suspensi Belakang |
Monosuspension with Pro-Link Suspension System (Axle Travel 207 mm) |
| Ukuran Ban Depan |
2.75 – 21 45P (Ban Dalam) |
| Ukuran Ban Belakang |
4.1 – 18 59P (Ban Dalam) |
| Rem Depan |
Cakram Hidrolik (Wavy Disc, 240 mm) |
| Rem Belakang |
Cakram Hidrolik (Wavy Disc, 220 mm) |
| Rear Wheels |
U-section 10 spoke cast alumunium |
| Front Wheels |
U-section 10 spoke cast alumunium |
| Panjang X Lebar X Tinggi |
2.119 X 793 X 1.153 mm |
| Tinggi Tempat Duduk |
869 mm |
| Jarak Sumbu Roda |
1.375 mm |
| Jarak Terendah Ke Tanah |
285 mm |
| Curb Weight |
122 kg |
| Kapasitas Tangki Bahan Bakar |
7.2 L |
| Kapasitas Minyak Pelumas |
1.0 Liter (Penggantian periodik) |
| Tipe Baterai Atau Aki |
MF Wet 12V 3.5Ah |
| Sistem Pengapian |
Full Transisterized |
| Tipe Busi |
NGK MR9C-9N atau ND U27EPR-N9 |

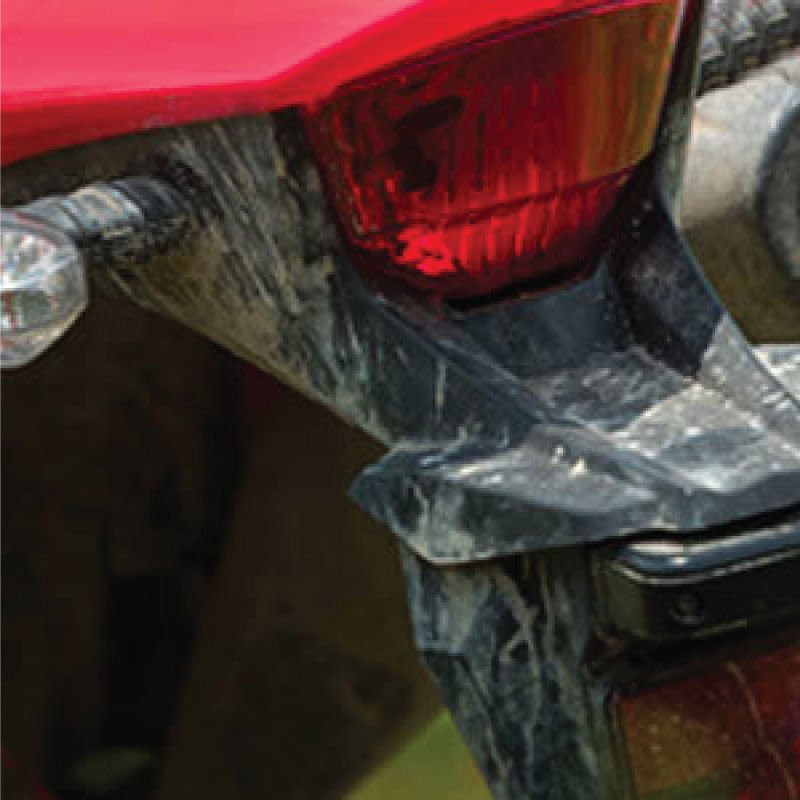

| Tail Light |
LED |
